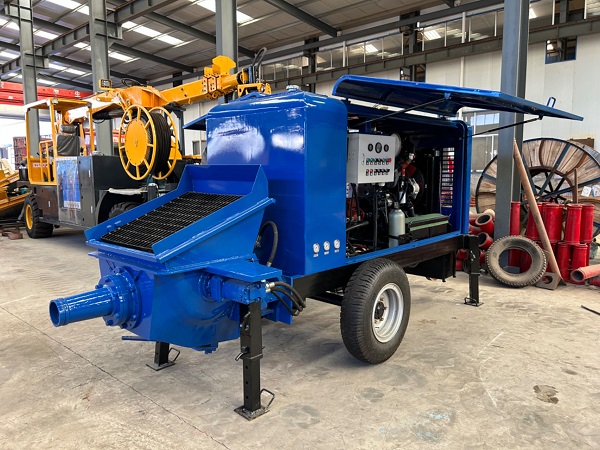

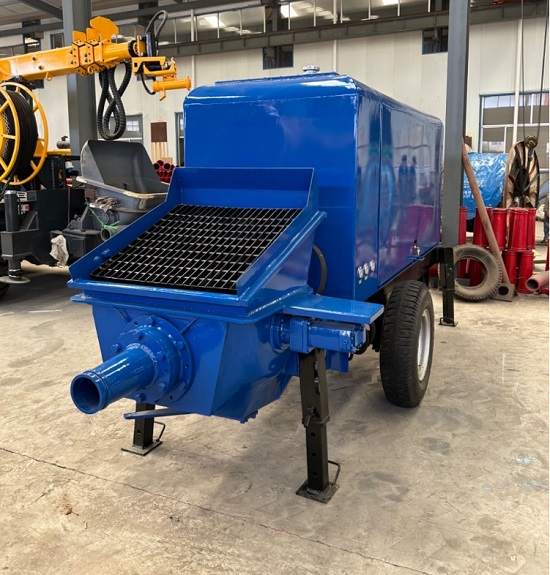

trailer mounted diesel engine small concrete pump for conveying concrete material
With the development of the construction industry, traditional construction cannot meet the development of the construction industry. Builders are eager to improve the efficiency of concrete delivery. Based on market demand, we designed this trailer-type concrete pump, which is easy to operate and can be towed flexibly. The workload can reach 30 cubic meters, the price is cheap, and it has won praise from customers
|
Item |
HBTS30 |
|
Max Theoretical Concrete Output(m³/h) |
30 |
|
Max Concrete outlet Pressure(Mpa) |
10 |
|
Concrete slump (mm) |
120—230 |
|
Aggregate Size (mm) |
40 |
|
Powder (KW) |
78 |
|
Speed (r/min) |
2300 |
|
Concrete Cylinder Diameter (mm) |
Ø 160/1050 |
|
Hopper Capacity (m³) |
0.6 |
|
Maximum Theoretical Conveying Distance (vertical/Horizontal) (m) |
150/500 |
|
Overall Dimension (mm) |
4000×1800×1950 |
|
Total Weight (kg) |
4050 |
