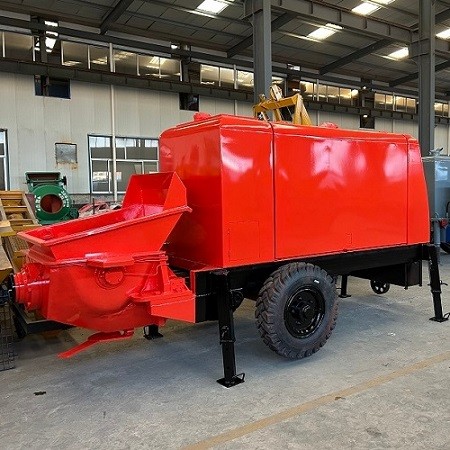

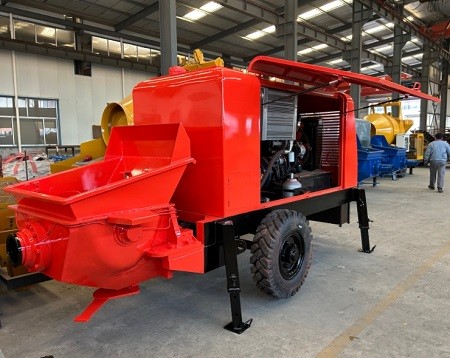

trailer mounted concrete line pump

Product Item : HBT50S
Category： Products
line pump: 50m3/h
trailer pump: trailer mounted
power system: hydraulic system
power supply: diesel engine
INQUIRY EMAIL

Taian Minle Concrete Machinery Factory is the professional concrete machine manufacture in China, our maine products are concrete line pump, concrete trailer pump, trailer mounted concrete pump, stationary concrete pump, concrete mixer and pump, truck mounted concrete pump, city concrete pump .etc. for more informaion on us, please kindly visit our website: www.concretepumpfactory.com

Types of the Concrete Pumps:

1. Boom Pumps (Truck-Mounted Pumps)
- Equipped with a robotic arm (boom) that can extend and maneuver.
- Ideal for large-scale projects like high-rises and bridges.
- Offers high output (up to 200 cubic meters/hour).

2. Line Pumps (Trailer Pumps)
- By flexible or steel hoses to pump concrete.
- Best for smaller projects, ground-level work, and remote areas.
- Lower output (up to 90 cubic meters/hour).

3. Specialized Pumps
- **Stationary Pumps** – Fixed on-site for continuous pumping.
- **Squeeze Pumps** – Uses rollers to push concrete through hoses.

How It Works:
- Concrete is loaded into a hopper.
- A hydraulic or mechanical pump system pushes the concrete through pipes.
- The operator controls the flow rate and direction.

Advantages: of the concrete line pump:
✔ Faster placement than manual methods.
✔ Reduces labor costs.
✔ Allows precise concrete placement.

✔ Minimizes waste.

Parameter of the concrete line pump HBT50S:

Item	Unit	HBT50S
Max Theoretical Concrete Output	m³/h	50
Pumping pressure/hydraulic system pressure	Mpa	13/31
Concrete slump	mm	100-230
Aggregate Size	mm	≤40
Engine Power	kw	85
Main oil pump	KAWASAKI
Hydraulic valve	BOLSEEN-Germany
Hydraulic hose	MANULI-Italy
Main electric element	SCHNEIDER
PLC Control computer	SIEMENS
Wireless remote controller	yes
The third-party or your friend test to factory	Acceptable
Concrete Cylinder Diameter	mm	200/1050
Hopper Capacity	L	350
Filling Height	mm	1400
Max Theoretical Conveying Distance (Horizontal Distance/vertical Height)	m	500/150
Color	As your requirements
Logo	Can be painted your company logo
Cleaning Mode		Water Washing
Dimension (transport)	mm	4000×1860×2200
Total Weight	kg	4150

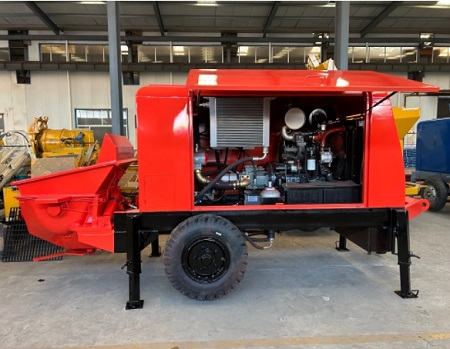

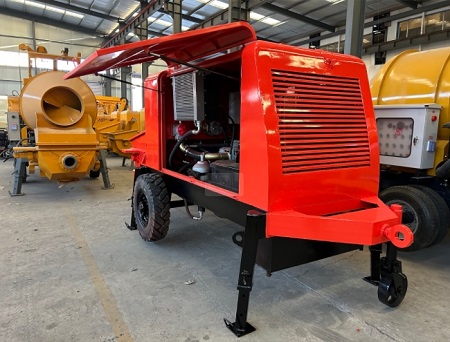

Diesel engine:

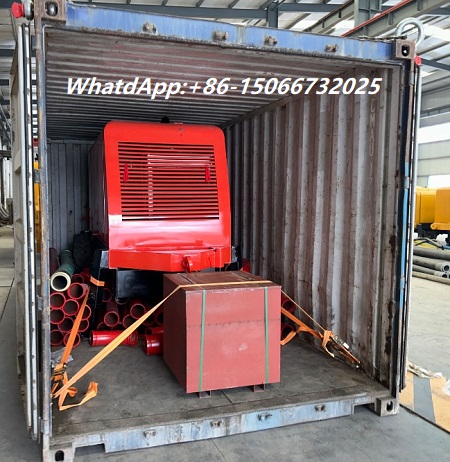

Loading:

Applications:
- High-rise buildings
- Bridges & tunnels
- Roads & pavements
- Residential construction

For further information about the concrete line pump, please don't heistate to contact me anytime.

WhatsApp/Mobile number: +86-15066732025

Tags: line pump; trailer pump; concrete pump factory
