  • factory priced diesel engine driven concrete mixer and pump with 40m3/h capacity
  • factory priced diesel engine driven concrete mixer and pump with 40m3/h capacity
  • factory priced diesel engine driven concrete mixer and pump with 40m3/h capacity
  • factory priced diesel engine driven concrete mixer and pump with 40m3/h capacity
factory priced diesel engine driven concrete mixer and pump with 40m3/h capacityfactory priced diesel engine driven concrete mixer and pump with 40m3/h capacityfactory priced diesel engine driven concrete mixer and pump with 40m3/h capacityfactory priced diesel engine driven concrete mixer and pump with 40m3/h capacity

factory priced diesel engine driven concrete mixer and pump with 40m3/h capacity

factory priced diesel engine driven concrete mixer and pump with 40m3/h capacity


Item

JBTS40

Theoretical concrete output M3/h

40

Theoretical maximum pumping pressure Mpa

10

distribute valve

S pipe valve

Duct diameter mm

125

Theoretical maximum transmission distance horizontal / vertical

500/150

Concrete Bore × stroke mm

200/1000

 Feeding height m3/h

1250

Maximum aggregate size mm

30

The concrete slump degrees range mm

100-200

diesel power kw

75

Cleaning method

High pressure water washing

Dimensions (L × W × H) mm

5800*2150*2600

Weight kg

5500

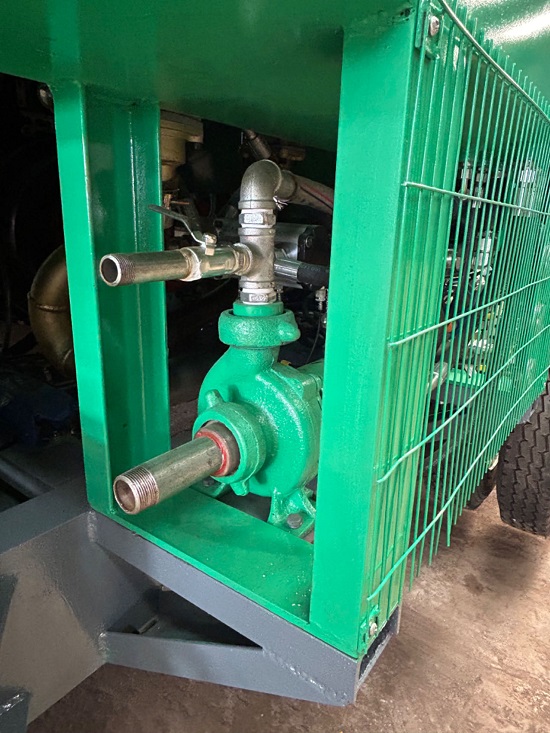

Water pump for water supply:

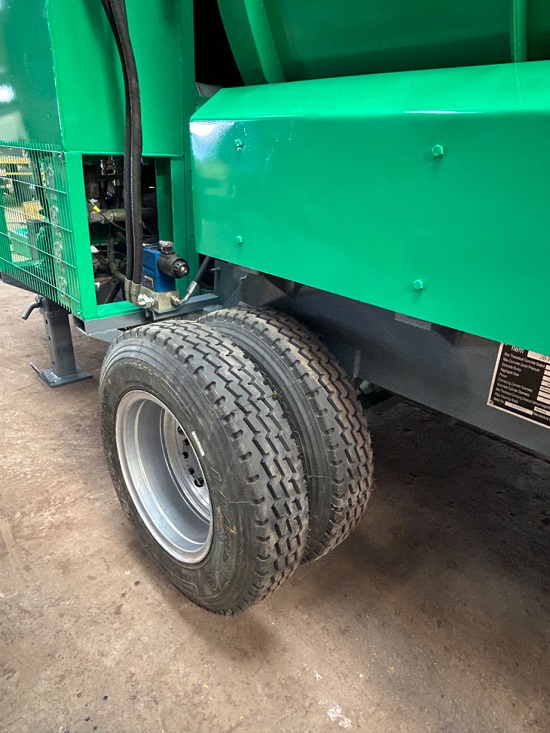

double tires:

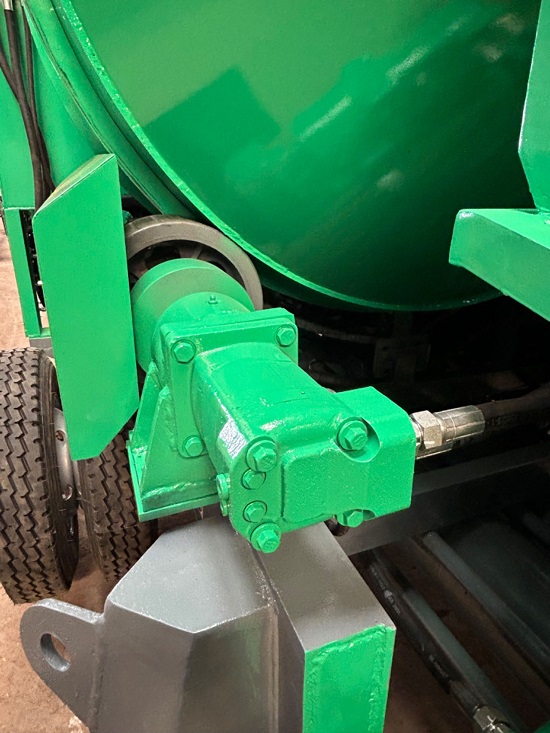

mixing motor:

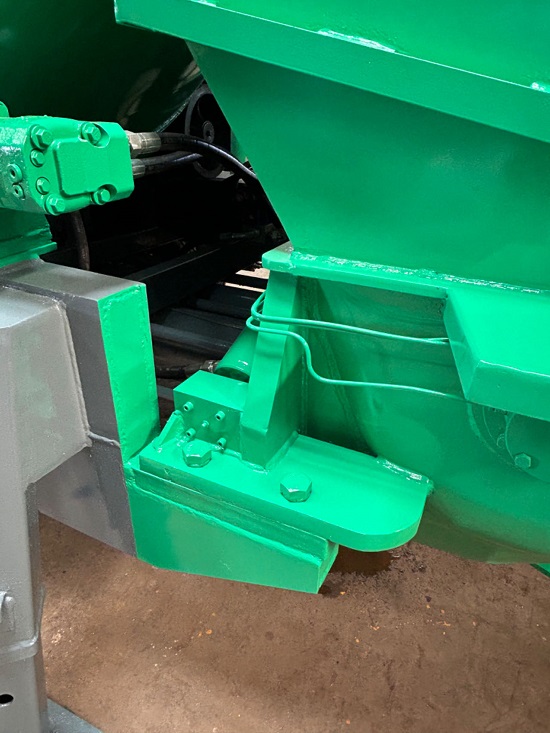

wear-resisting alloy steel plate:

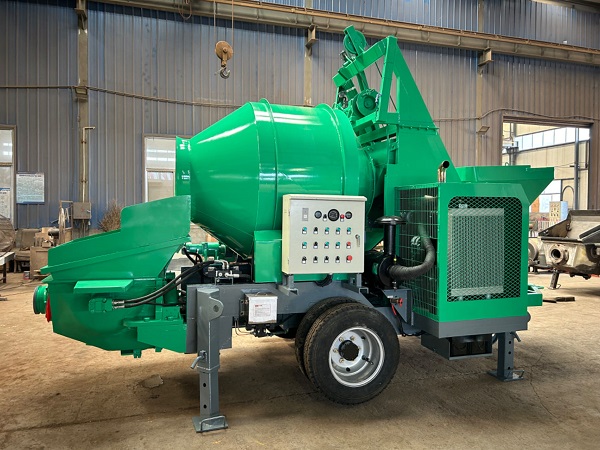

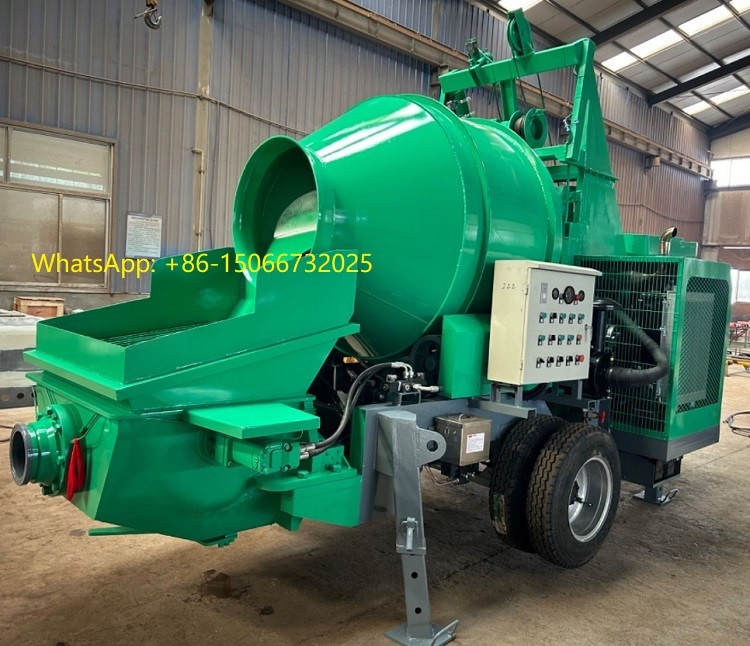

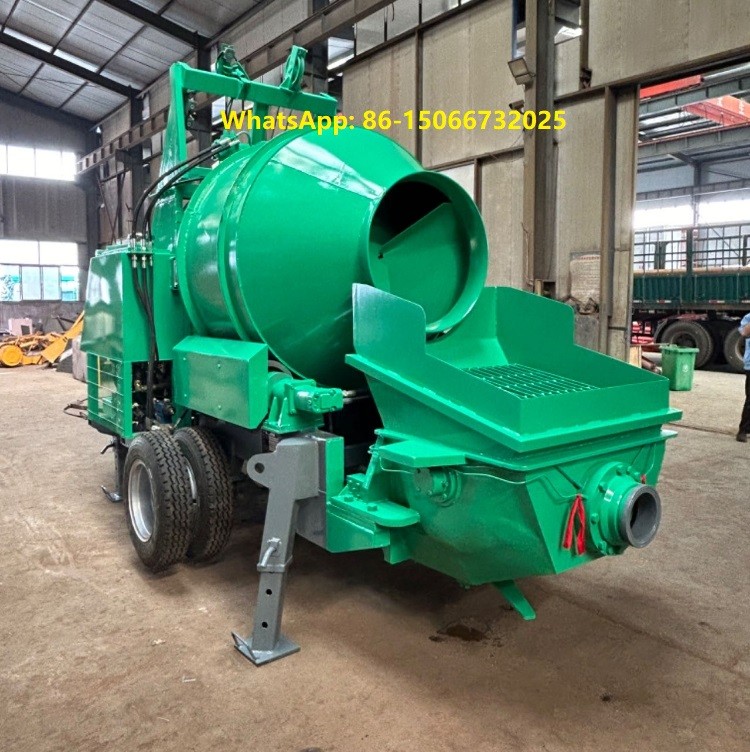

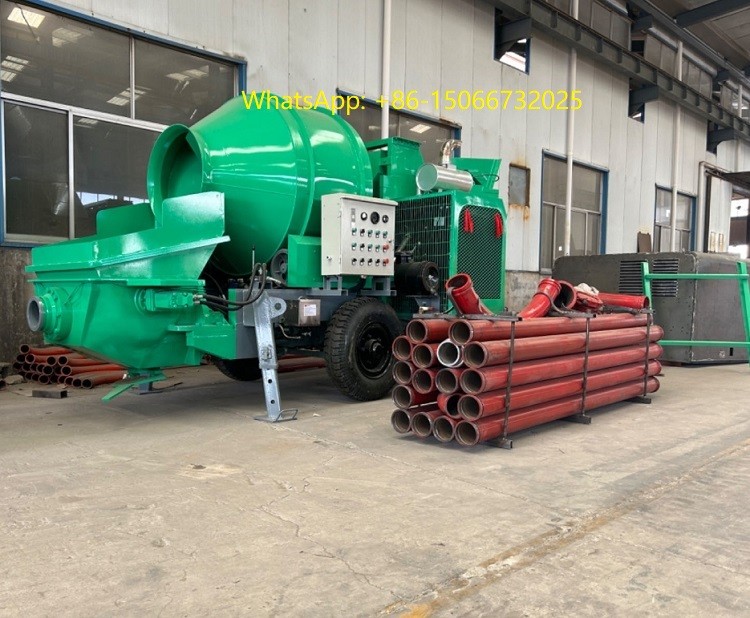

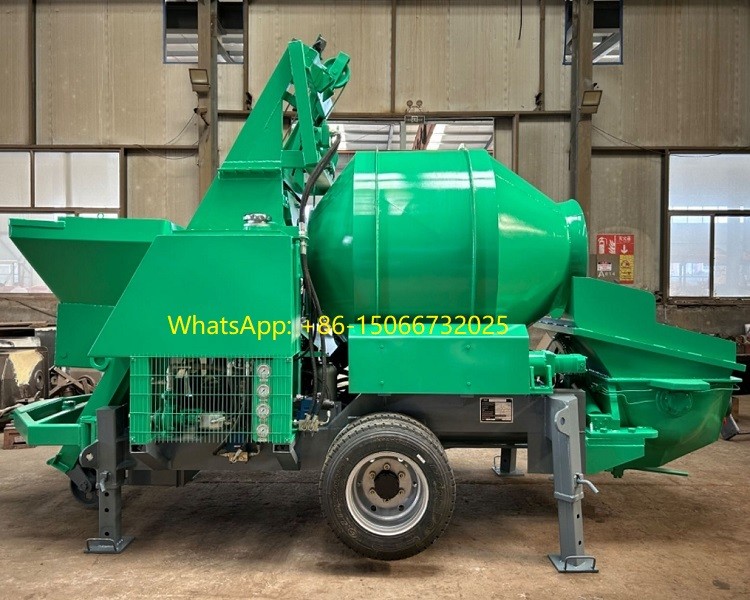

concrete mixer and pump:



Tain Minle Machine Manufacture Co., Ltd.

Factory with 25+ years of experience providing many types of concrete construction equipment, which has service more than 80 world-famous brands and maintained a repurchase rate of 95%.

The HBTS/JBS series concrete mixer/pump was widely used in building projects, such as water conservancy, electricity, railways, highways, tunnels, bridges and culverts, ports, mines, high-rise buildings, national defense engineering, etc. It was economical, practical, efficient, and can ensure the quality of concrete pouring, mixing or delivery, It is an ideal concrete conveying equipment. With CE, ISO BV Certificate, past SGS CCIC Quality Test, OEM ODM and the special requirements we can also offer you the drawing and the best solution!!



Minle Factory is the professional factory of concrete pump, we focus on research and development, design, sales and after-sales service. We mainly engaged in diesel concrete pump, electric concrete pump, Concrete Mixer With Pump, truck mounted concrete pump, concrete shotcrete/spraying robot machine, mining concrete pump, concrete boom pump truck and the sludge transfer pump.

We have team of experts, our team of skilled engineers and technicians is committed to delivering exceptional customer service and support, always striving to exceed our clients' expectations, We pride ourselves on producing top-of-the-line concrete pumps with cutting-edge technology that meet the needs of our customers. Our team of experienced engineers and designers work tirelessly to ensure that every concrete pump that leaves our factory is of the highest quality and meets industry standards. From the initial concept to the final product, we take every step to ensure that our customers receive the best equipment.



 concrete mixer and pump, it was the popoular machine and designed by our factory, mainly mixing, pumping wet concrete, it was combined by thetraditional concrete pump body and the drum mixers together,

concrete mixer and pump, the most suitable for using four to twelve stories buildings,especially in the group buildings, bridges, and the spread of small construction sits where need theconcrete mixer at the scene.

concrete mixing and pump, it became more and more popular on the construction building work
