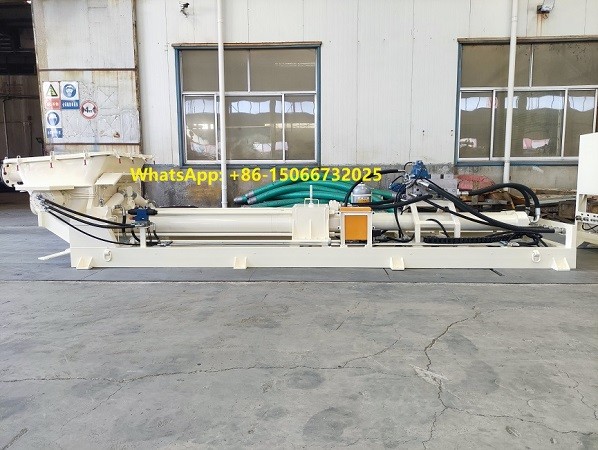

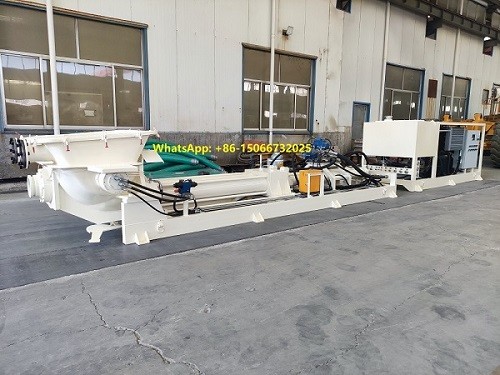

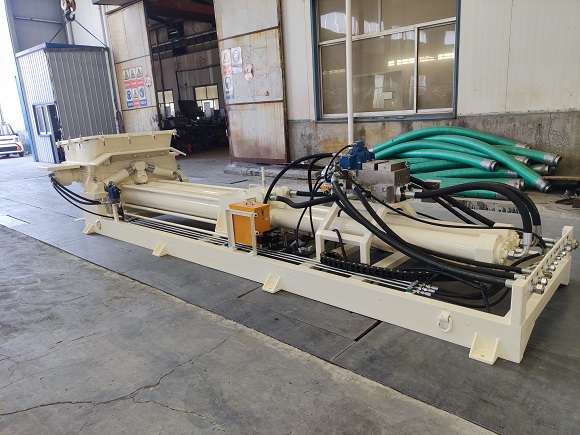

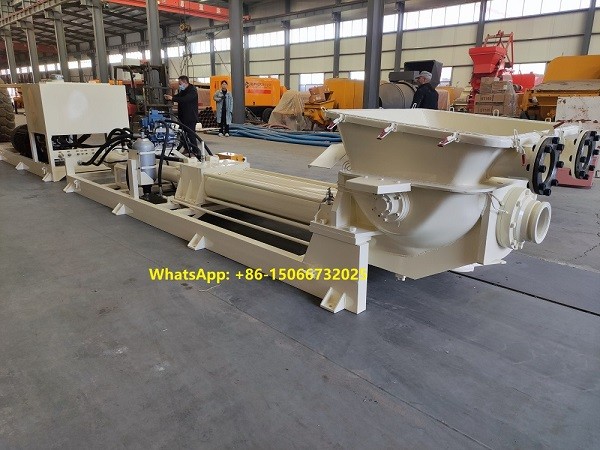

Concrete filling pump/ Mine backfill concrete pump machine for industrial and mining applications
Mining concrete delivery pump, as a mechanical equipment specially designed for underground mine construction, has the ability to transport concrete at high pressure, large flow rate and long distance. The unique structural design of the mining concrete delivery pump enables it to easily complete various complex concrete delivery tasks in a small underground space, effectively solving the problem of underground material transportation.
|
HBMD100/21-320 Concrete filling pump |
||
|
Item |
unit |
parameter |
|
Max. output |
m3/h |
103 |
|
Actual output |
m3/h |
98 |
|
Max. theoretical pressure |
MPa |
21 |
|
hydraulic pressure |
MPa |
32 |
|
Max. horizotal distance |
m |
3000 |
|
Vertical reach |
m |
400 |
|
Concrete output |
mm |
180 |
|
Hopper capacity |
m3 |
1.45 |
|
Distribute valve |
S pipe valve |
|
|
Max. aggregate sieze |
mm |
25 |
|
concrete slump |
mm |
80-230 |
|
motor power |
kW/V |
2x160/660 |
|
Wash way |
water washing |
|
|
hydraulic pump |
ml/r |
Rexroth A11VO190 × 4 |
|
Hydraulic valve |
Bolseen |
|
|
Max. oil pressure |
MPa |
35 |
|
Max. distribute pressure |
MPa |
16 |
|
Max. mixing pressure |
MPa |
10 |
|
Cooling way |
Air cooling/water cooling |
|
|
Hydraulic hose |
Manuli-Italy |
|
|
Overal dimension |
mm |
pumping 6500x1600x1350 control 4000x2100x1600 |
|
Weight |
Kg |
11000 |
